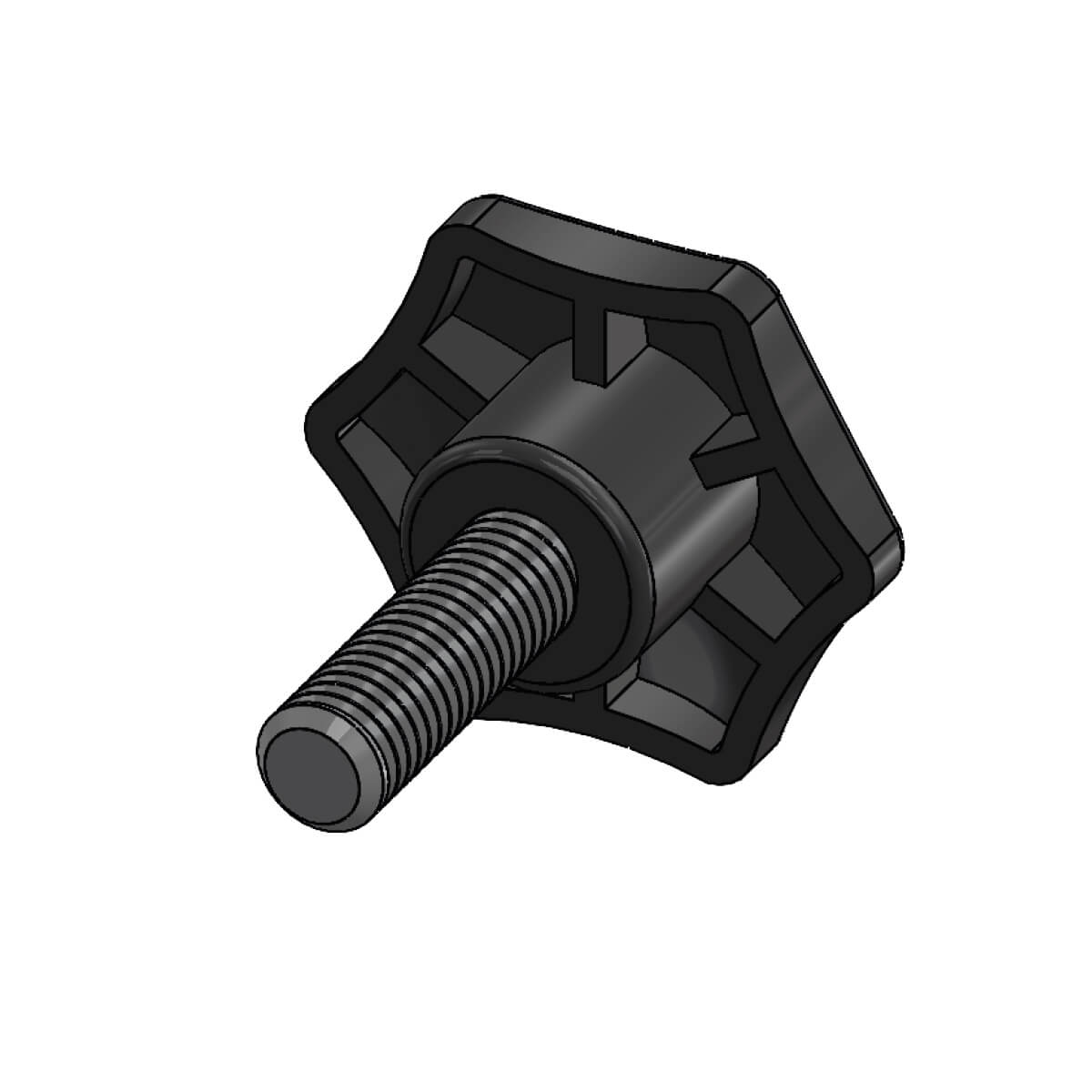

FASTENERS / SCREW

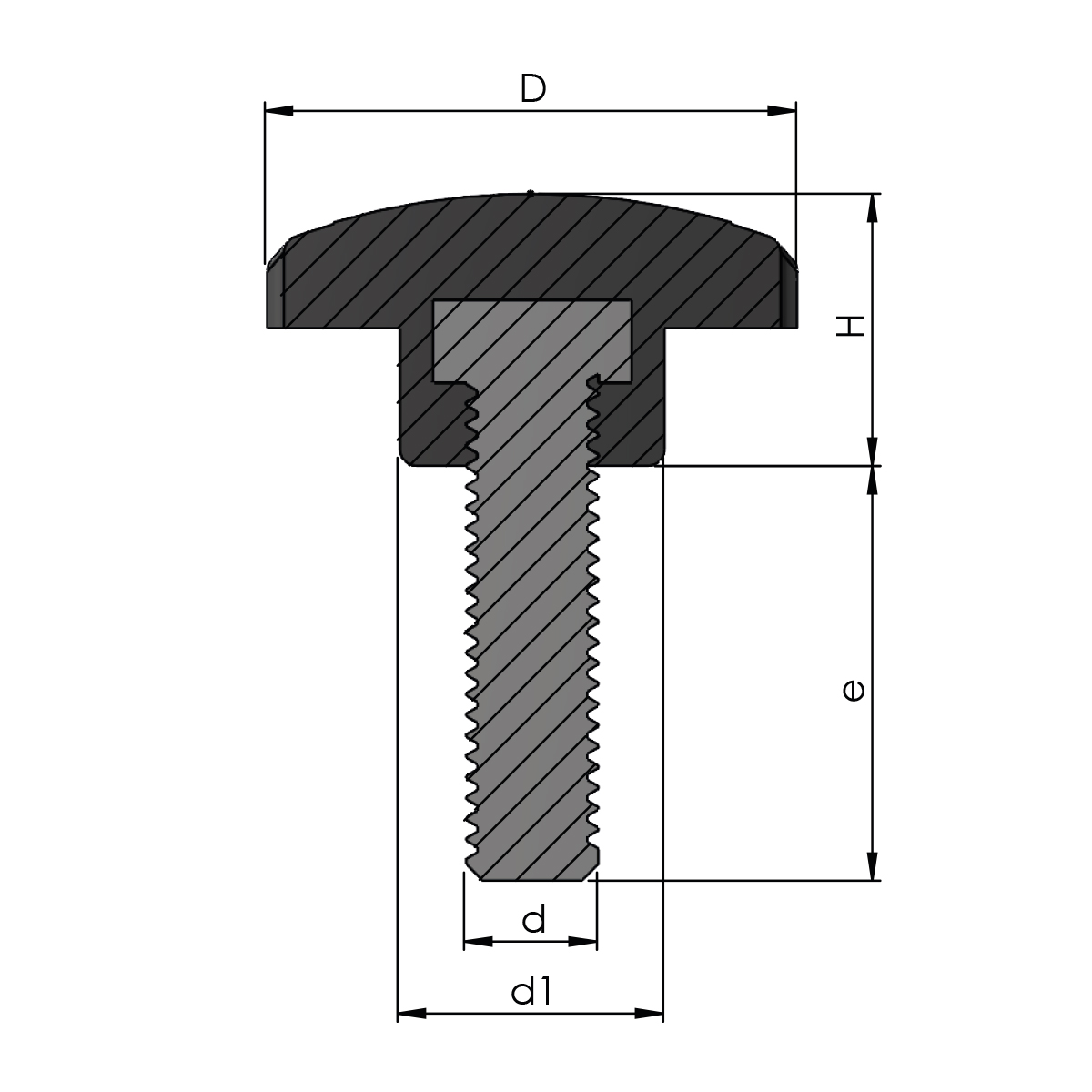

| CODE | NOMINAL SIZE (MM) | D | H | d | e | d1 |
| MCT10005 | M5x10 SCREW | 35 | 17 | 5 | 10 | 15 |
| MCT10006 | M5x15 SCREW | 35 | 17 | 5 | 15 | 15 |
| MCT10007 | M5x20 SCREW | 35 | 17 | 5 | 20 | 15 |
| MCT10008 | M5x25 SCREW | 35 | 17 | 5 | 25 | 15 |
| MCT10009 | M5x30 SCREW | 35 | 17 | 5 | 30 | 15 |
| MCT10010 | M5x40 SCREW | 35 | 17 | 5 | 40 | 15 |
| MCT10011 | M5x45 SCREW | 35 | 17 | 5 | 45 | 15 |
| MCT10012 | M5x50 SCREW | 35 | 17 | 5 | 50 | 15 |
| MCT10013 | M5x55 SCREW | 35 | 17 | 5 | 55 | 15 |
| MCT10014 | M5x60 SCREW | 35 | 17 | 5 | 60 | 15 |
| MCT10016 | M6x10 SCREW | 35 | 17 | 6 | 10 | 15 |
| MCT10017 | M6x15 SCREW | 35 | 17 | 6 | 15 | 15 |
| MCT10018 | M6x20 SCREW | 35 | 17 | 6 | 20 | 15 |
| MCT10019 | M6x25 SCREW | 35 | 17 | 6 | 25 | 15 |
| MCT10020 | M6x30 SCREW | 35 | 17 | 6 | 30 | 15 |
| MCT10021 | M6x35 SCREW | 35 | 17 | 6 | 35 | 15 |
| MCT10022 | M6x40 SCREW | 35 | 17 | 6 | 40 | 15 |
| MCT10023 | M6x45 SCREW | 35 | 17 | 6 | 45 | 15 |
| MCT10024 | M6x50 SCREW | 35 | 17 | 6 | 50 | 15 |
| MCT10025 | M6x55 SCREW | 35 | 17 | 6 | 55 | 15 |
| MCT10026 | M6x60 SCREW | 35 | 17 | 6 | 60 | 15 |
| MCT10056 | M8x10 SCREW | 45 | 26 | 8 | 10 | 18 |
| MCT10057 | M8x15 SCREW | 45 | 26 | 8 | 15 | 18 |
| MCT10058 | M8x20 SCREW | 45 | 26 | 8 | 20 | 18 |
| MCT10059 | M8x25 SCREW | 45 | 26 | 8 | 25 | 18 |
| MCT10060 | M8x30 SCREW | 45 | 26 | 8 | 30 | 18 |
| MCT10061 | M8x35 SCREW | 45 | 26 | 8 | 35 | 18 |
| MCT10062 | M8x40 SCREW | 45 | 26 | 8 | 40 | 18 |
| MCT10063 | M8x45 SCREW | 45 | 26 | 8 | 45 | 18 |
| MCT10064 | M8x50 SCREW | 45 | 26 | 8 | 50 | 18 |
| MCT10065 | M8x55 SCREW | 45 | 26 | 8 | 55 | 18 |
| MCT10066 | M8x60 SCREW | 45 | 26 | 8 | 60 | 18 |
| MCT10067 | M8x65 SCREW | 45 | 26 | 8 | 65 | 18 |
| MCT10068 | M8x70 SCREW | 45 | 26 | 8 | 70 | 18 |
| MCT10028 | M10x10 SCREW | 55 | 26 | 10 | 10 | 22 |
| MCT10029 | M10x15 SCREW | 55 | 26 | 10 | 15 | 22 |
| MCT10030 | M10x20 SCREW | 55 | 26 | 10 | 20 | 22 |
| MCT10031 | M10x25 SCREW | 55 | 26 | 10 | 25 | 22 |
| MCT10032 | M10x30 SCREW | 55 | 26 | 10 | 30 | 22 |
| MCT10033 | M10x35 SCREW | 55 | 26 | 10 | 35 | 22 |
| MCT10034 | M10x40 SCREW | 55 | 26 | 10 | 40 | 22 |
| MCT10035 | M10x45 SCREW | 55 | 26 | 10 | 45 | 22 |
| MCT10036 | M10x50 SCREW | 55 | 26 | 10 | 50 | 22 |
| MCT10037 | M10x55 SCREW | 55 | 26 | 10 | 55 | 22 |
| MCT10038 | M10x60 SCREW | 55 | 26 | 10 | 60 | 22 |
| MCT10039 | M10x65 SCREW | 55 | 26 | 10 | 65 | 22 |
| MCT10040 | M10x70 SCREW | 55 | 26 | 10 | 70 | 22 |
| MCT10042 | M12x10 SCREW | 65 | 32 | 12 | 10 | 26 |
| MCT10043 | M12x15 SCREW | 65 | 32 | 12 | 15 | 26 |
| MCT10044 | M12x20 SCREW | 65 | 32 | 12 | 20 | 26 |
| MCT10045 | M12x25 SCREW | 65 | 32 | 12 | 25 | 26 |
| MCT10046 | M12x30 SCREW | 65 | 32 | 12 | 30 | 26 |
| MCT10047 | M12x35 SCREW | 65 | 32 | 12 | 35 | 26 |
| MCT10048 | M12x40 SCREW | 65 | 32 | 12 | 40 | 26 |
| MCT10049 | M12x45 SCREW | 65 | 32 | 12 | 45 | 26 |
| MCT10050 | M12x50 SCREW | 65 | 32 | 12 | 50 | 26 |
| MCT10051 | M12x55 SCREW | 65 | 32 | 12 | 55 | 26 |
| MCT10052 | M12x60 SCREW | 65 | 32 | 12 | 60 | 26 |
| MCT10053 | M12x65 SCREW | 65 | 32 | 12 | 65 | 26 |
| MCT10054 | M12x70 SCREW | 65 | 32 | 12 | 70 | 26 |
| MCT10073 | M6x20/ 5x30 SCREW-ROUND HEAD | 20 | 7 | 5/6 | CHANGEABLE | 12 |
| MCT10074 | M6x15 SCREW | 26 | 7 | 6 | CHANGEABLE | 13 |
